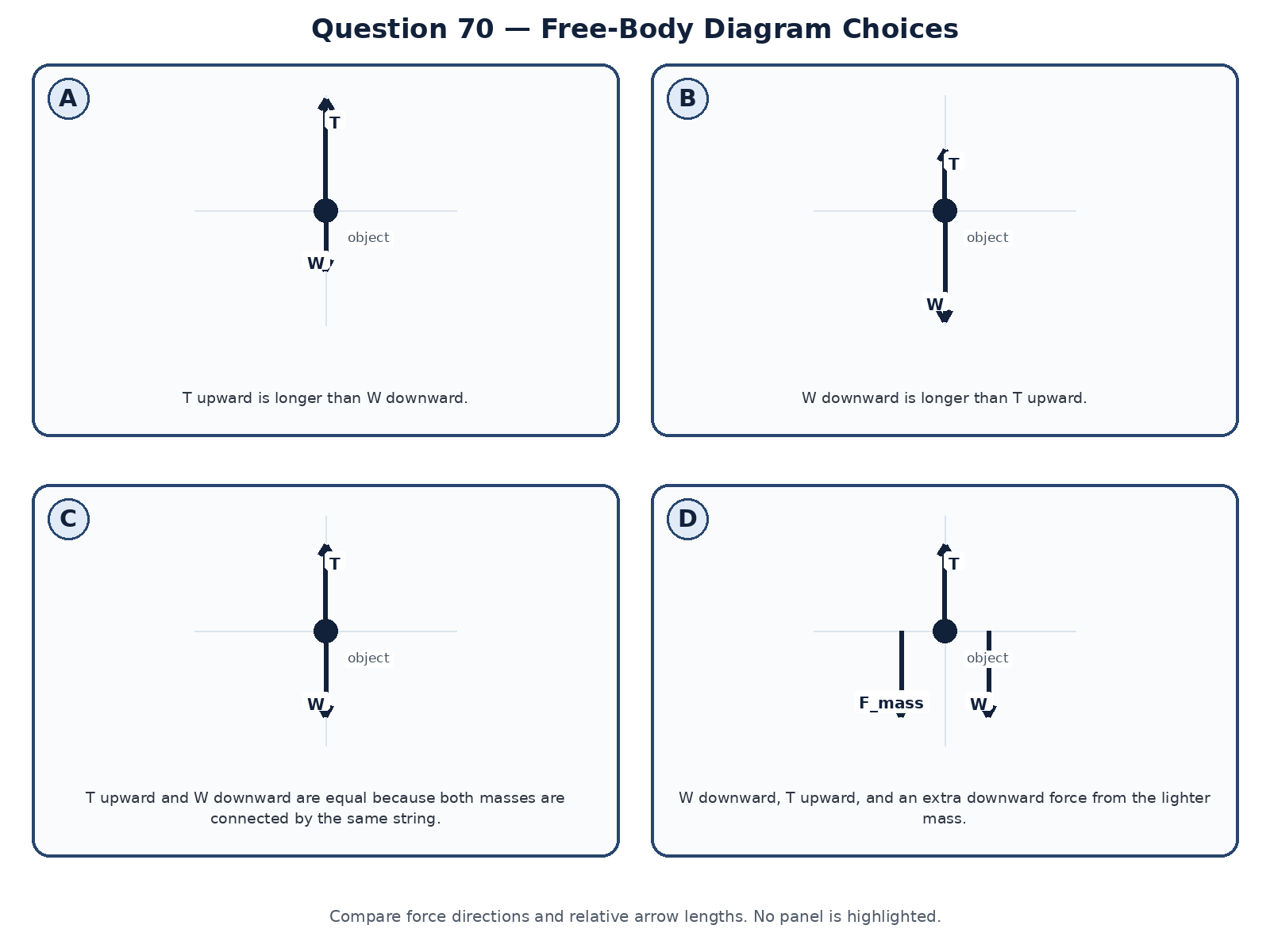

In an Atwood machine, the heavier hanging mass accelerates downward. Which free-body diagram for the heavier mass is correct?
A
T upward is longer than W downward.
B
W downward is longer than T upward.
C
T upward and W downward are equal because both masses are connected by the same string.
D
W downward, T upward, and an extra downward force from the lighter mass.
